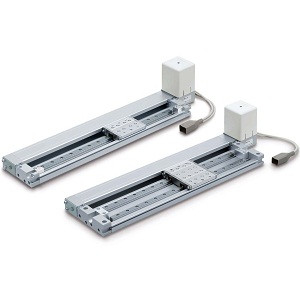

SMC LEMH32T-500-S12P1 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$2,095.00
The SMC LEMH32T-500-S12P1 is a versatile electric actuator from the LEMH/HT Series, designed for precision and efficiency. This low-profile slider type linear guide is available in both single and double axis configurations, powered by a step motor with a servo of 24 VDC. Its compact design features a low center of gravity with a table height of just 28 mm, making it ideal for applications where space is at a premium. The actuator can be paired with various guides, enhancing its adaptability and high maintainability.
The motor mounting position is flexible, allowing for installation above or below, and on the right or left side, depending on your setup requirements. For added functionality, a solid-state auto switch can be installed for limit and intermediate signal confirmation. The actuator offers selectable controllability, providing complete control similar to an air cylinder, with the capability for 12-point intermediate stops. Position settings are easily adjustable through value input, ensuring precise operation.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, the SMC LEMH32T-500-S12P1 is engineered for seamless integration into your automation systems, delivering reliable performance and enhanced productivity.
- Guide:
- 1 Axis
- Size:
- 32
- Motor Mounting Position:
- Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 500 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- LECP2 Program Less Type (With Stroke Study) PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
