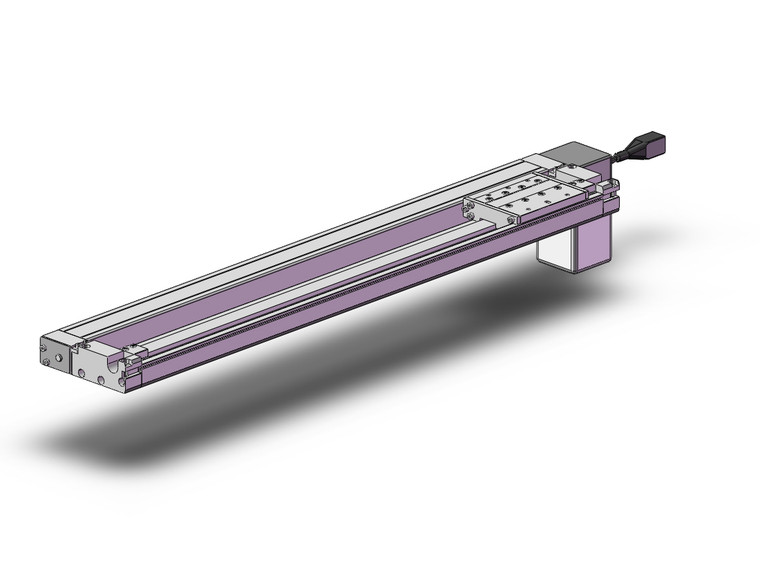

SMC LEMH32UT-550 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$1,900.00
SMC LEMH32UT-550 - LEMH Electric Actuator, 32mm, 550mm Stroke
The SMC LEMH32UT-550 - electric actuator, 32mm frame, 550mm stroke.
Key Features & Specifications
- Electric actuation - programmable position/speed/force
- Step/servo motor - precise positioning
- Compact - minimized height
- Ball screw/belt - matched to application
- Controller compatible - SMC LECP/JXC
- Size: 32mm | Stroke: 550mm
Typical Applications
Assembly, dispensing, and compact positioning.
Manufactured by SMC Corporation.
- Guide:
- 1 Axis
- Size:
- 32
- Motor Mounting Position:
- Bottom Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 550 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
