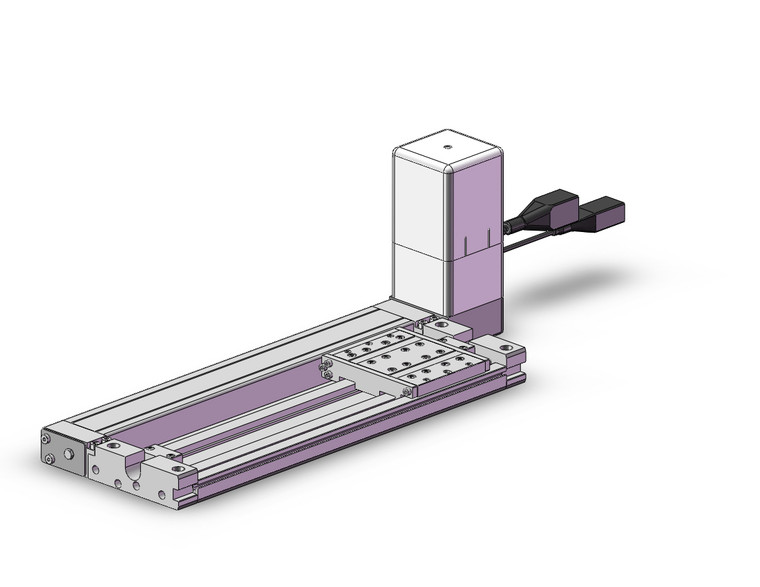

SMC LEMHT25T-200B-S3C918 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC) Applicable To The JXC series
SMC
$2,445.00
The SMC LEMHT25T-200B-S3C918 is a versatile electric actuator from the LEMH/HT Series, designed for precision and efficiency. This low-profile slider type linear guide is available in both single and double axis configurations, making it adaptable to a variety of applications. Powered by a 24 VDC step motor, it is compatible with the JXC series controllers, ensuring seamless integration and control.
Key features include a low profile and low center of gravity, with a table height of just 28 mm for the LEMC/H/HT size 25, enhancing stability and performance. The actuator can be paired with various guides, offering high maintainability and flexibility in motor mounting positions, which can be selected as above or below, right or left.
For enhanced functionality, a solid-state auto switch can be mounted for limit and intermediate signal confirmation. The actuator offers selectable controllability, allowing for complete control similar to an air cylinder, with the capability of 12-point intermediate stops. Position setting is simplified through value input, making it user-friendly and efficient.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, the SMC LEMHT25T-200B-S3C918 is an ideal choice for applications requiring precise linear motion and reliable performance.
- Guide:
- 2 Axes
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Equivalent Lead:
- 48mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Actuator Cable Type/Length:
- Standard Cable 3 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
