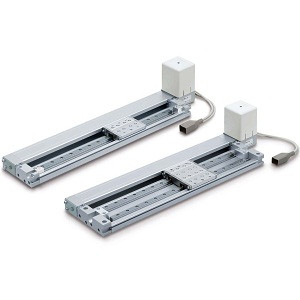

SMC LEMHT25T-600 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$2,000.00
The SMC LEMHT25T-600 is a versatile electric actuator from the LEMH/HT Series, designed for precision and efficiency in linear motion applications. This low-profile slider type linear guide is available in both single and double axis configurations, powered by a step motor with a servo of 24 VDC. With a table height of just 28 mm, it offers a low center of gravity, making it ideal for compact spaces. The actuator can be paired with various guides, enhancing its adaptability to different setups. It boasts high maintainability and offers flexible motor mounting positions, allowing for installation above or below, and on the right or left side. For added functionality, a solid-state auto switch can be installed for limit and intermediate signal confirmation. The actuator provides selectable controllability, enabling complete control similar to an air cylinder, with the capability for 12-point intermediate stops and easy position setting through value input. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, ensuring seamless integration into your automation system.
- Guide:
- 2 Axes
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
