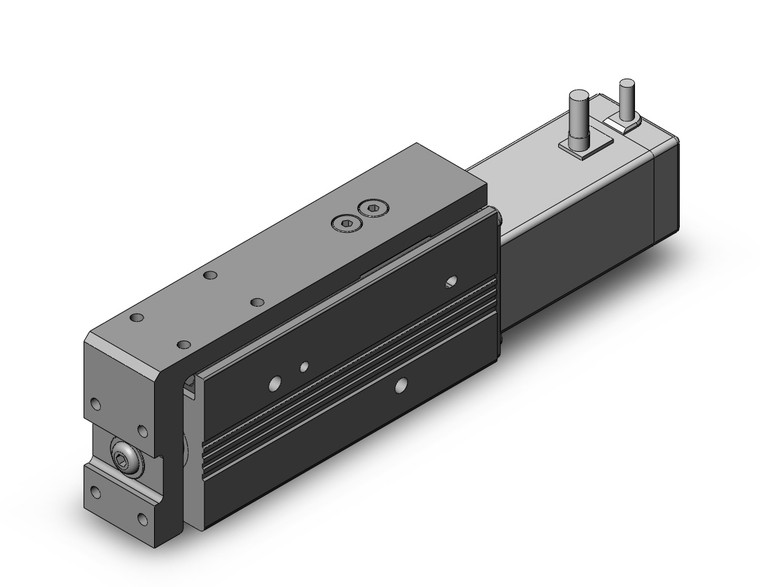

SMC LEPS10J-50-R5AP1D Miniature Slide Table Type

SMC LEPS10J-50-R5AP1D LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEPS10J-50-R5AP1D
$1,045.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC)

  • Compact and lightweight; W 21 mm x H 41 mm x L 138.6 mm, weight 290 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    10
    Motor size:
    Basic Style
    Lead Screw Type:
    LEPS6: 8 mm, LEPS10: 10 mm
    Stroke:
    Stroke 50 mm
    Motor Cable Entry:
    Top Entry
    Actuator Cable Type:
    Robotic Cable (Flexible Cable)
    Actuator Cable Length:
    5 m
    Controller Type:
    LECPA Pulse Input Type PNP
    I/O Cable Length, Communication Plug:
    1.5 m
    Controller Mounting:
    DIN Rail Mounting
