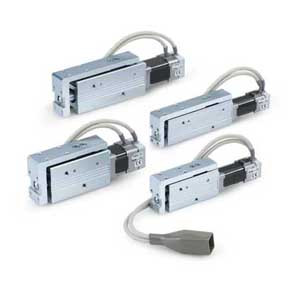

SMC LEPS10J-50-S3 LEPS Series Electric Actuator Miniature Slide Table Type Step Motor (Servo 24 VDC)
SMC
$700.00
The SMC LEPS10J-50-S3 is a compact and lightweight electric actuator from the LEPS Series, designed for precision and efficiency. With dimensions of W 21 mm x H 41 mm x L 138.6 mm and a weight of just 290 g, this miniature slide table type step motor is perfect for applications where space is limited. It offers a maximum pushing force of 50 N and boasts a positioning repeatability of ±0.05 mm, ensuring accurate and reliable performance. The actuator allows for customizable settings with the ability to set position, speed, and force across 64 points. It achieves a maximum horizontal speed of 350 mm/s, making it suitable for fast-paced operations. Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, this actuator offers versatility and adaptability for various industrial needs. Powered by a 24 VDC servo, the LEPS10J-50-S3 is an ideal choice for those seeking a reliable and efficient solution in electric actuation.
- Size:
- 10
- Motor size:
- Basic Style
- Lead Screw Type:
- LEPS6: 8 mm, LEPS10: 10 mm
- Stroke:
- Stroke 50 mm
- Motor Cable Entry:
- Top Entry
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
