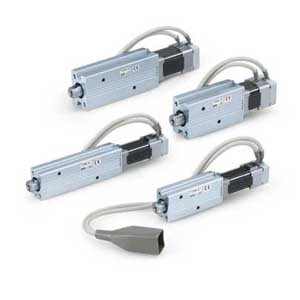

SMC LEPY10LK-50-S3AP1 Miniature Rod Type

SMC LEPY10LK-50-S3AP1 LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEPY10LK-50-S3AP1
$820.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC)

  • Compact and lightweight; W 20.5 mm x H 30 mm x L 125.6 mm, weight 240 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    10
    Motor size:
    Compact
    Lead Screw Type:
    LEPY6: 4 mm, LEPY10: 5 mm
    Stroke:
    Stroke 50 mm
    Motor Cable Entry:
    Top Entry
    Actuator Cable Type:
    Standard Cable
    Actuator Cable Length:
    3 m
    Controller Type:
    LECPA Pulse Input Type PNP
    I/O Cable Length, Communication Plug:
    1.5 m
    Controller Mounting:
    Screw Mounting
