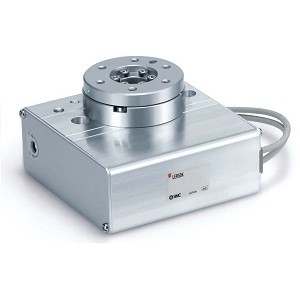

SMC LER10J-2-RCC918 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LER10J-2-RCC918 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for engineers and manufacturing professionals seeking advanced automation solutions. This servo-driven rotary table operates at 24 VDC and is specifically designed for seamless integration with the JXC Series controllers, ensuring optimal performance and compatibility. Key technical specifications include a versatile rotation angle of up to 320° (310° for the LER10 model), with additional configurations available at 180° and 90°. The LER10J model boasts a low-profile design with a height of just 42 mm, facilitating space-saving installations without compromising on functionality. The built-in step motor enhances compactness and reliability, while delivering shock-less and high-speed actuation with a maximum speed of 420°/sec (7.33 rad/sec) and acceleration/deceleration capabilities of up to 3,000°/sec² (52.36 rad/sec²). Engineers will appreciate the flexibility of setting speed, acceleration/deceleration, and position, with the ability to program up to 64 distinct points. The energy-efficient design includes an automatic 40% power reduction once the table has stopped, contributing to sustainable operations. Simplified setup is achieved through intuitive data input, requiring only position and speed parameters, with pre-configured actuator data in the controller for immediate deployment. Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and legacy models like LECP6 and LECPMJ, the LER10J-2-RCC918 offers extensive integration possibilities. This electric rotary table is a robust solution for applications demanding precision, speed, and efficiency, making it a valuable asset in any advanced manufacturing environment.
