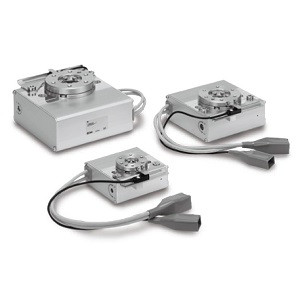

SMC LER10K-1-R5CM18S LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

SMC LER10K-1-R5CM18S LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

SMC
SKU:
LER10K-1-R5CM18S
Availability:
Factory Stock
$1,659.00
Condition:
New
Current Stock:
Description

LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

  • Rotation angle : 320° (310°), 180°, 90°; () The value indicated in brackets shows the value for the LER10;
  • Low profile: Height 42 mm (LER10);
  • Space-saving : Built-in step motor;
  • Shock-less/high speed actuation; Max. speed: 420°/sec (7.33 rad/sec); Max. acceleration/deceleration : 3,000°/sec2 (52.36 rad/sec2);
  • Possible to set speed, acceleration/deceleration, and position; Max. 64 points;
  • Energy-saving : Automatic 40% power reduction after the table has stopped;
  • Easy setting : Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator. (The actuator and controller are provided as a set.);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Table Accuracy:
    Basic Style
    Size:
    10
    Max. Rotating Torque:
    High torque type (LER10: 0.32N·m, LER30: 1.2N·m, LER50: 10N·m)
    Rotation Angle:
    360°
    Motor Cable Entry:
    Basic (Entry On The Right Side)
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol:
    CC-Link Ver.1.10
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Straight Type
