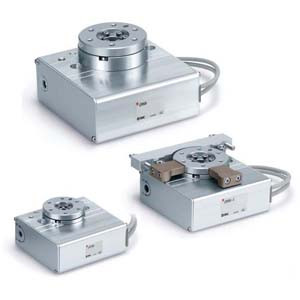

SMC LER50J LER Series Electric Rotary Table Step Motor (Servo 24 VDC)
SMC
$1,300.00
The SMC LER50J LER Series Electric Rotary Table Step Motor (Servo 24 VDC) is engineered for precision and efficiency in industrial applications. This advanced rotary table offers a versatile rotation angle of 320° (310° for LER10), 180°, and 90°, making it adaptable for various operational needs. With a low-profile design, the LER50J stands at a compact height of 42 mm, optimizing space in your setup.
Equipped with a built-in step motor, this rotary table ensures shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). The LER50J allows for precise control with the ability to set speed, acceleration/deceleration, and position across up to 64 points, enhancing operational flexibility.
Energy efficiency is a key feature, with an automatic 40% power reduction once the table has stopped, contributing to lower operational costs. The user-friendly design simplifies setup, requiring only two data inputsposition and speedthanks to the pre-configured controller data. The actuator and controller are provided as a set, ensuring seamless integration.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, the LER50J is a reliable choice for engineers and manufacturing professionals seeking a robust and efficient rotary table solution.
- Table Accuracy:
- Basic Style
- Size:
- 50
- Max. Rotating Torque:
- Basic (LER10: 0.22N·m, LER30: 0.8N·m, LER50: 6.6N·m)
- Rotation Angle:
- LER10: 310, LER30: 320, LER50: 320
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
