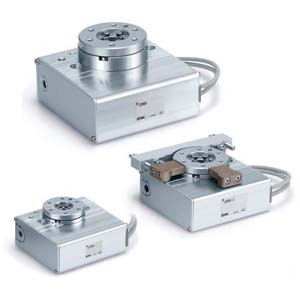

SMC LER50J-S3AN3 LER Series Electric Rotary Table Step Motor (Servo 24 VDC)

SMC LER50J-S3AN3 LER Series Electric Rotary Table Step Motor (Servo 24 VDC)

SMC
SKU:
LER50J-S3AN3
Availability:
Factory Stock
$1,665.00
Condition:
New
Current Stock:
Description

LER Series Electric Rotary Table Step Motor (Servo 24 VDC)

  • Rotation angle : 320° (310°), 180°, 90°; () The value indicated in brackets shows the value for the LER10;
  • Low profile: Height 42 mm (LER10);
  • Space-saving : Built-in step motor;
  • Shock-less/high speed actuation; Max. speed: 420°/sec (7.33 rad/sec); Max. acceleration/deceleration : 3,000°/sec2 (52.36 rad/sec2);
  • Possible to set speed, acceleration/deceleration, and position; Max. 64 points;
  • Energy-saving : Automatic 40% power reduction after the table has stopped;
  • Easy setting : Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator. (The actuator and controller are provided as a set.);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Table Accuracy:
    Basic Style
    Size:
    50
    Max. Rotating Torque:
    Basic (LER10: 0.22N·m, LER30: 0.8N·m, LER50: 6.6N·m)
    Rotation Angle:
    LER10: 310, LER30: 320, LER50: 320
    Motor Cable Entry:
    Basic (Entry On The Right Side)
    Actuator Cable Type:
    Standard Cable
    Actuator Cable Length:
    3 m
    Controller Type:
    LECPA Pulse Input Type NPN
    I/O Cable Length, Communication Plug:
    3 m
    Controller Mounting:
    Screw Mounting
