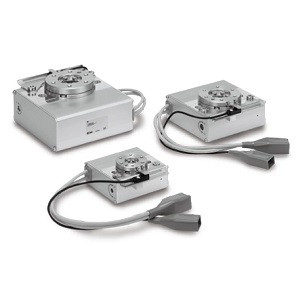

SMC LERH10K-1L-R3C917 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

The SMC LERH10K-1L-R3C917 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for engineers and manufacturing professionals seeking advanced automation solutions. This servo-driven rotary table operates on a 24 VDC power supply and is specifically designed for seamless integration with the JXC Series controllers. Key technical specifications include a versatile rotation angle of 320° (310° for the LER10), 180°, and 90°, allowing for flexible application in various industrial settings. The low-profile design, with a height of just 42 mm, ensures minimal space consumption, while the built-in step motor enhances compactness and efficiency. Engineered for high-speed and shock-less actuation, the LERH10K-1L-R3C917 achieves a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). This performance capability is complemented by the ability to set speed, acceleration/deceleration, and position across up to 64 points, providing extensive control over motion parameters. Energy efficiency is a core feature, with an automatic 40% power reduction once the table has stopped, contributing to reduced operational costs. The user-friendly setup requires only two data inputs—position and speed—streamlining the configuration process. The actuator and controller are provided as a pre-configured set, ensuring quick and hassle-free deployment. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this rotary table offers broad compatibility and flexibility for various automation systems. Note that the LECP6 and LECPMJ models are discontinued. Optimize your manufacturing processes with the SMC LERH10K-1L-R3C917, a robust and reliable solution for precise rotary motion control.
