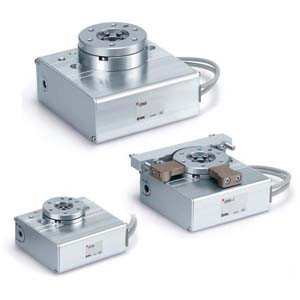

SMC LERH30K-2-R3 LER Series Electric Rotary Table Step Motor (Servo 24 VDC)
SMC
$1,395.00
The SMC LERH30K-2-R3 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) is engineered for precision and efficiency in industrial applications. This advanced rotary table offers a versatile rotation angle of 320° (310° for LER10), 180°, and 90°, making it adaptable to various operational requirements. With a low-profile design, the LERH30K-2-R3 stands at a compact height of 42 mm, optimizing space in constrained environments.
Equipped with a built-in step motor, this rotary table ensures shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a peak acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). The system allows for precise control with the ability to set speed, acceleration/deceleration, and position across up to 64 points, enhancing operational flexibility.
Energy efficiency is a key feature, with an automatic 40% power reduction once the table has stopped, contributing to sustainable manufacturing practices. The user-friendly setup requires only two parametersposition and speedthanks to the pre-configured controller data, streamlining the integration process.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, the LERH30K-2-R3 is designed to meet the demands of modern engineering and manufacturing environments. This product is ideal for professionals seeking reliable, high-performance rotary motion solutions.
- Table Accuracy:
- High Precision Type
- Size:
- 30
- Max. Rotating Torque:
- High torque type (LER10: 0.32N·m, LER30: 1.2N·m, LER50: 10N·m)
- Rotation Angle:
- External stopper: 180
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
