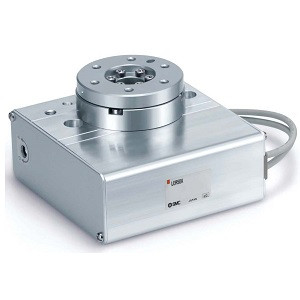

SMC LERH50EJ-R3CE17 LER-E Series Electric Rotary Table Battery-less Absolute Encoder

SMC LERH50EJ-R3CE17 LER-E Series Electric Rotary Table Battery-less Absolute Encoder

SMC
SKU:
LERH50EJ-R3CE17
Availability:
Factory Stock
$2,070.00
Condition:
New
Current Stock:
Description

LER-E Series Electric Rotary Table Battery-less Absolute Encoder

  • Restart from the last stop position is possible.;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered.;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information.; There is no need to manage spare batteries or replacement maintenance.;
  • Rotation angle: 320º, 180º, 90º;
  • Space saving: Built-in step motor;
  • Shock-less/high speed actuation; Max. speed: 420º/sec; Max. acceleration/deceleration: 3000º/sec2;?Value when an external stopper is mounted;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Table Accuracy:
    High Precision Type
    Size:
    50
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Max. Rotating Torque:
    Basic:6.6N·m
    Rotating Angle:
    320°
    Motor Cable Entry:
    Basic (Entry On The Right Side)
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol Input/Output:
    EtherCAT
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
