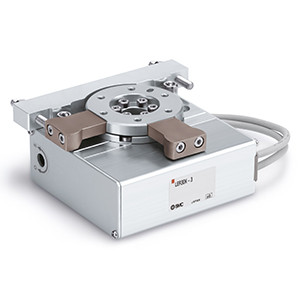

SMC LERH50EK LER-E Series Electric Rotary Table Battery-less Absolute Encoder
SMC
$1,500.00
LER-E Series Electric Rotary Table Battery-less Absolute Encoder
- Restart from the last stop position is possible.;
- Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered.;
- No battery is installed. Reduced maintenance; No battery is used to store the position information.; There is no need to manage spare batteries or replacement maintenance.;
- Rotation angle: 320º, 180º, 90º;
- Space saving: Built-in step motor;
- Shock-less/high speed actuation; Max. speed: 420º/sec; Max. acceleration/deceleration: 3000º/sec2;?Value when an external stopper is mounted;
- Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
- Table Accuracy:
- High Precision Type
- Size:
- 50
- Motor Type:
- Battery-less Absolute Encoder Type(Step Motor 24 VDC)
- Max. Rotating Torque:
- High Torque:10N·m
- Rotating Angle:
- 320°
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type/Length:
- Without Cable
- Communication Protocol Input/Output:
- Without Controller
- Number Of Axes/Special Specification:
- Without Controller
- Mounting:
- Without Controller
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Accessory
