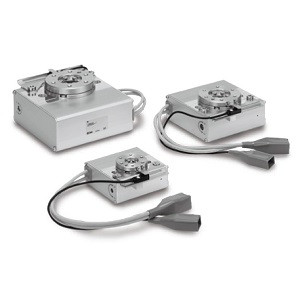

SMC LERH50J-1-S3C918 LER Series Electric Rotary Table Step Motor (Servo 24 VDC) Continuous Rotation Specification Applicable To The JXC Series

The SMC LERH50J-1-S3C918 LER Series Electric Rotary Table Step Motor is engineered for precision and efficiency, making it an ideal choice for advanced automation systems. This servo-driven rotary table operates on a 24 VDC power supply and is specifically designed for continuous rotation applications, seamlessly integrating with the JXC Series controllers. Key technical specifications include a versatile rotation angle of 320° (310° for LER10), 180°, and 90°, allowing for flexible application in various industrial settings. The low-profile design, with a height of just 42 mm for the LER10, ensures space-saving installation without compromising performance. The built-in step motor facilitates shock-less and high-speed actuation, achieving a maximum speed of 420°/sec (7.33 rad/sec) and a maximum acceleration/deceleration of 3,000°/sec² (52.36 rad/sec²). Engineers will appreciate the ability to set speed, acceleration/deceleration, and position with precision, supporting up to 64 programmable points. The energy-efficient design includes an automatic 40% power reduction once the table has stopped, optimizing power consumption without sacrificing functionality. The LERH50J-1-S3C918 is user-friendly, requiring only two data inputs—position and speed—for setup. The actuator comes pre-configured with the controller, ensuring a streamlined installation process. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this rotary table offers broad integration capabilities. This product is an excellent choice for engineers and manufacturing professionals seeking a reliable, high-performance rotary table for their automation needs.
