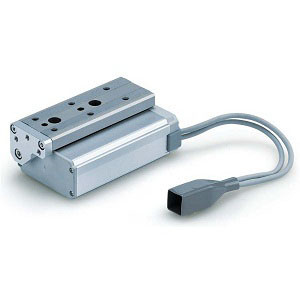

SMC LES16DJ-75 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$950.00
Introducing the SMC LES16DJ-75, a part of the LES-DC Series Electric Slide Table/Compact Type, designed for precision and efficiency. This advanced slide table features a servo motor operating at 24 VDC, ensuring reliable performance for your automation needs.
Key features include a compact design, offering a workpiece mounting surface height reduced by up to 12% compared to the LESH model. It supports a vertical work load increased by up to 50%, making it ideal for demanding applications. The lightweight construction is reduced by up to 29%, facilitating easier integration into your systems.
With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this slide table ensures precise and consistent operation. It is engineered to reduce cycle time with a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s.
The LES16DJ-75 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6 (Manufacture Discontinued), as well as LECPMJ (Manufacture Discontinued), providing flexibility and adaptability for various applications.
Upgrade your automation setup with the SMC LES16DJ-75 for enhanced performance and efficiency.
- Size:
- 16
- Motor Mounting Position:
- Motor Straight,Type D Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
