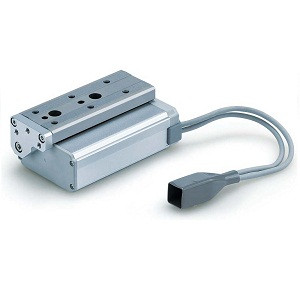

SMC LES16RJ-100-S3C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,590.00
The SMC LES16RJ-100-S3C918 is a cutting-edge electric slide table from the LES Series, designed for precision and efficiency. This compact type step motor, powered by a 24 VDC servo, is specifically engineered to be compatible with the JXC Series controllers. It boasts a reduced workpiece mounting surface height, offering a 12% decrease compared to the LESH model, making it ideal for space-constrained applications. The vertical work load capacity has been enhanced by up to 50%, while its lightweight design reduces weight by up to 29%. With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this electric slide table ensures high accuracy and reliability. It is capable of reducing cycle time with a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. Compatible with a range of controllers, including JXC51, JXC61, and others, the LES16RJ-100-S3C918 is a versatile and robust solution for various industrial automation needs.
- Size:
- 16
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:8mm, Size16:10mm, Size25:16mm
- Stroke:
- Stroke 100mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Standard Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
