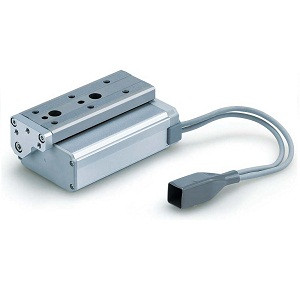

SMC LES16RJ-50-S3C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,540.00
The SMC LES16RJ-50-S3C918 is a cutting-edge electric slide table from the LES Series, designed for precision and efficiency. This compact type step motor, powered by a 24 VDC servo, is specifically engineered to be compatible with the JXC Series controllers.
Key features include a significantly reduced workpiece mounting surface height, offering a compact design that is up to 12% smaller compared to the LESH model. It boasts an impressive increase in vertical work load capacity by up to 50%, while maintaining a lightweight structure that is reduced by up to 29%.
The LES16RJ-50-S3C918 delivers a maximum pushing force of 180 N and ensures high precision with a positioning repeatability of ±0.05 mm. It is designed to optimize cycle times with a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s.
This electric slide table is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. Whether for industrial automation or precision engineering applications, the LES16RJ-50-S3C918 offers unparalleled performance and adaptability.
- Size:
- 16
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:8mm, Size16:10mm, Size25:16mm
- Stroke:
- Stroke 50mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Standard Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
