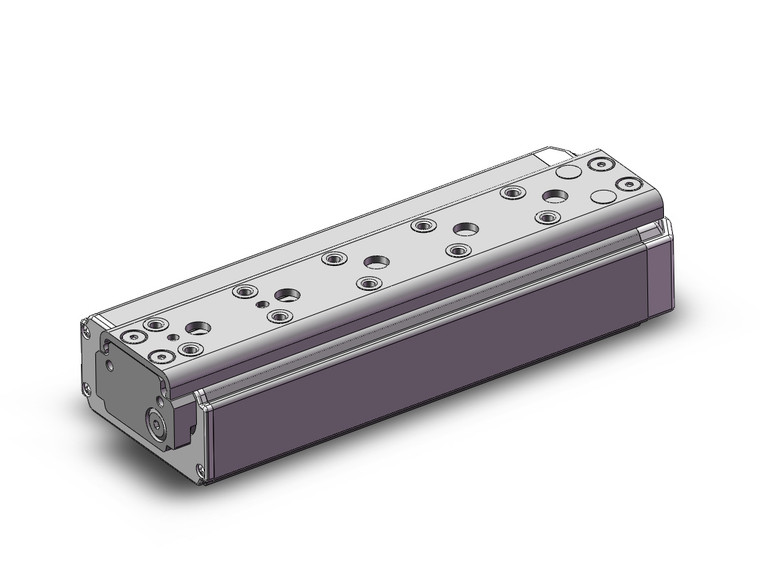

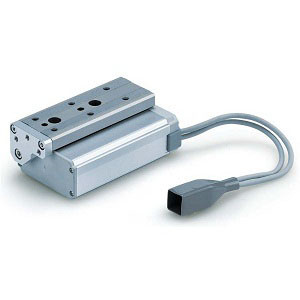

SMC LES16RK-100B LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,195.00
The SMC LES16RK-100B is a part of the LES-DC Series, featuring a compact electric slide table with a servo motor operating at 24 VDC. This model is designed to optimize space and efficiency, offering a workpiece mounting surface height reduced by up to 12% compared to the LESH series. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s. The LES16RK-100B is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric slide table is ideal for applications requiring precision, speed, and compact design.
- Size:
- 16
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
