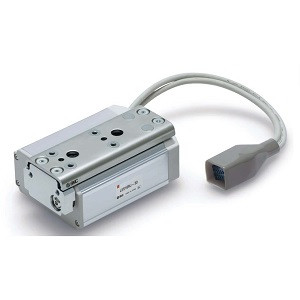

SMC LES25DEJ-30-R3CP18 LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

SMC LES25DEJ-30-R3CP18 LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

SMC
SKU:
LES25DEJ-30-R3CP18
Availability:
Factory stock
$1,910.00
Condition:
New
Current Stock:
Description

LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. pushing force: 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Cycle time can be reduced; Max. acceleration/deceleration: 5,000 mm/s2; Max. speed: 400 mm/s ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
