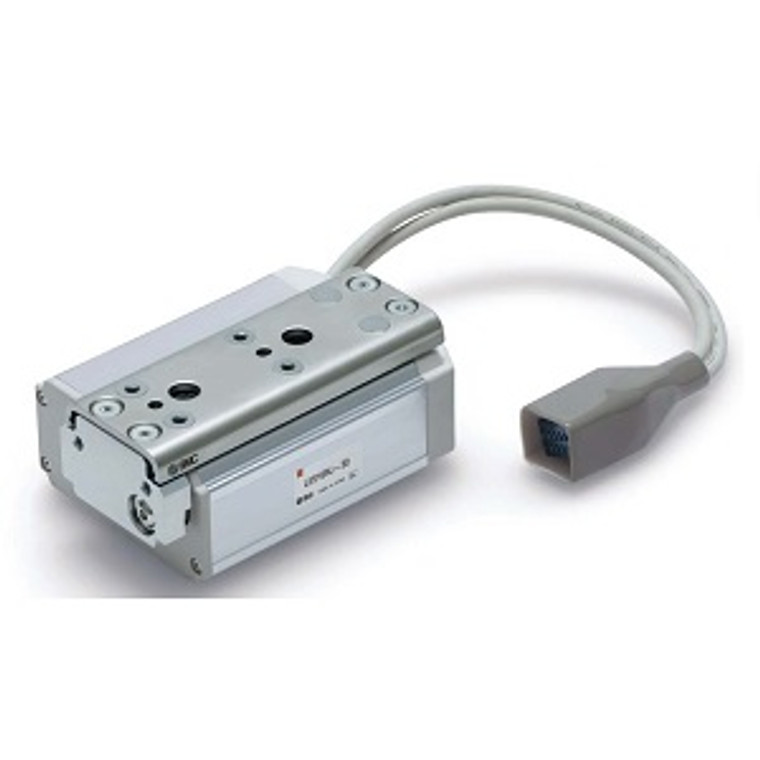

SMC LES25DEK-50H-R3C918 LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

SMC LES25DEK-50H-R3C918 LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

SMC
SKU:
LES25DEK-50H-R3C918
$1,865.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LES-E Series Electric Slide Table/Compact Type Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. pushing force: 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Cycle time can be reduced; Max. acceleration/deceleration: 5,000 mm/s2; Max. speed: 400 mm/s ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    In-line Motor Type/D Type
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Lead:
    8mm
    Stroke:
    Stroke 50 mm
    Motor Option:
    Without Lock
    Body Option:
    Without Option
    Mounting:
    With Side Holder (4 pcs.)
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol Input/Output:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
