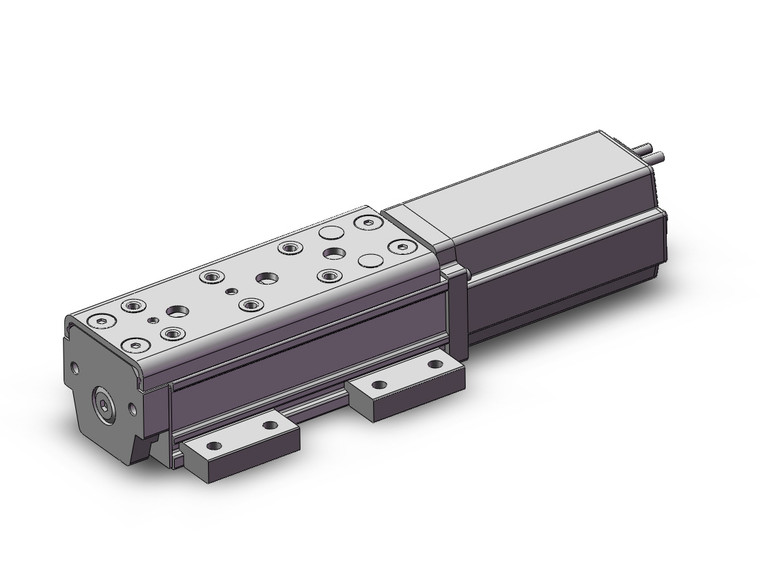

SMC LES25DJ-50B-R3C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$2,085.00
The SMC LES25DJ-50B-R3C918 is a cutting-edge electric slide table from the LES Series, designed for precision and efficiency. This compact type step motor, powered by a 24 VDC servo, is perfectly compatible with the JXC Series controllers. It offers a remarkable reduction in workpiece mounting surface height by up to 12% compared to the LESH model, making it an ideal choice for space-constrained applications. The vertical work load capacity has been significantly increased by up to 50%, while the overall weight has been reduced by up to 29%, ensuring ease of installation and operation.
With a maximum pushing force of 180 N and positioning repeatability of ±0.05 mm, this electric slide table guarantees precise and reliable performance. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The LES25DJ-50B-R3C918 is compatible with a wide range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This versatile and high-performance electric slide table is an excellent choice for applications requiring precision, speed, and compact design.
- Size:
- 25
- Motor Mounting Position:
- In-line Motor Type/D Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:8mm, Size16:10mm, Size25:16mm
- Stroke:
- Stroke 50mm
- Motor Option:
- With Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Robotic Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
