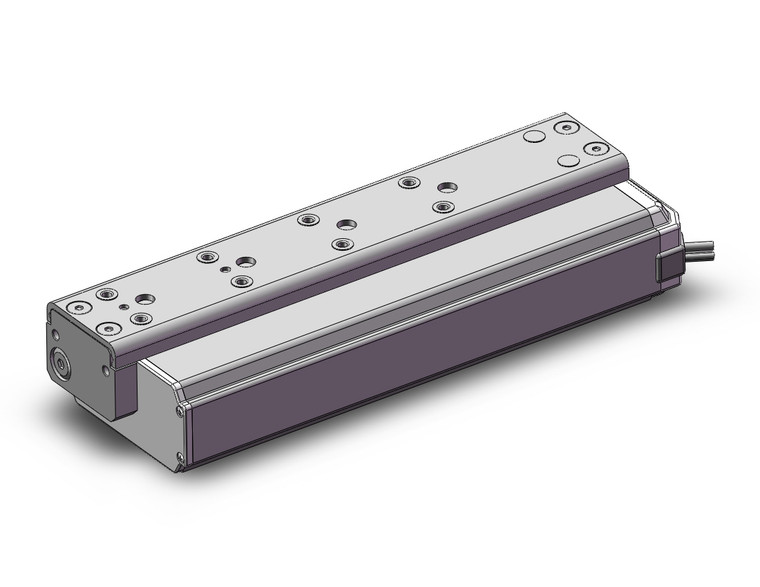

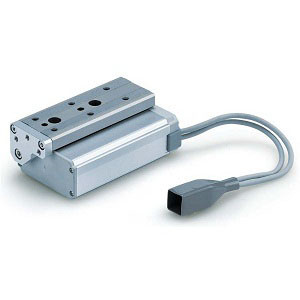

SMC LES25LAJ-150BS-R1 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,740.00
The SMC LES25LAJ-150BS-R1 is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance with a Servo Motor operating at 24 VDC. This model offers a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH, making it an ideal choice for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while maintaining a lightweight design with a weight reduction of up to 29%.
Engineered for precision, the LES25LAJ-150BS-R1 provides a maximum pushing force of 180 N and ensures positioning repeatability within ±0.05 mm. Its high-speed capabilities allow for a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s, enabling reduced cycle times and enhanced productivity.
This electric slide table is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the now discontinued LECP6 and LECPMJ models. Whether for industrial automation or precision engineering tasks, the SMC LES25LAJ-150BS-R1 delivers reliable and efficient performance.
- Size:
- 25
- Motor Mounting Position:
- Symmetric Type,L Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- With Lock
- Body Option:
- Dust Proof Specification
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
