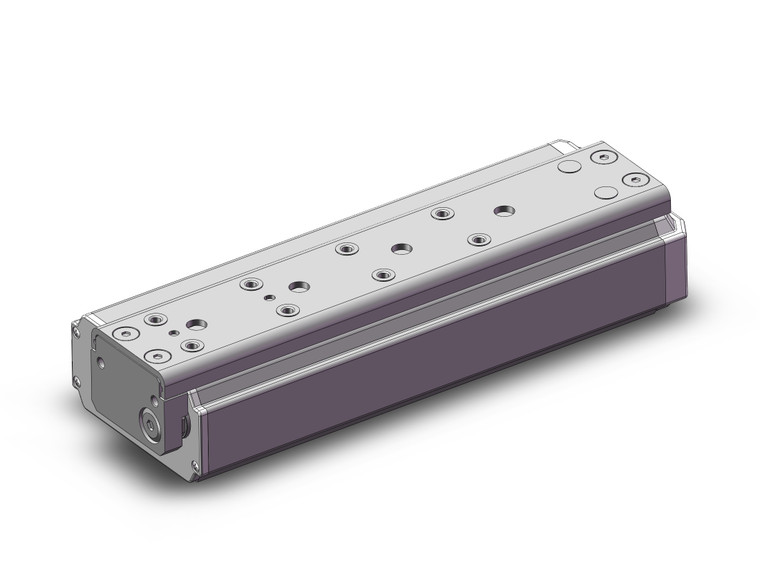

SMC LES25RAJ-125-R56P5D LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,910.00
The SMC LES25RAJ-125-R56P5D is a part of the LES-DC Series, featuring a compact electric slide table with a servo motor operating at 24 VDC. This model is designed to optimize space and efficiency, offering a workpiece mounting surface height reduced by up to 12% compared to the LESH model. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES25RAJ-125-R56P5D is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric slide table is ideal for applications requiring compact, efficient, and precise motion control.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 125 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 5 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 5 m
- Controller Mounting:
- DIN Rail Mounting
