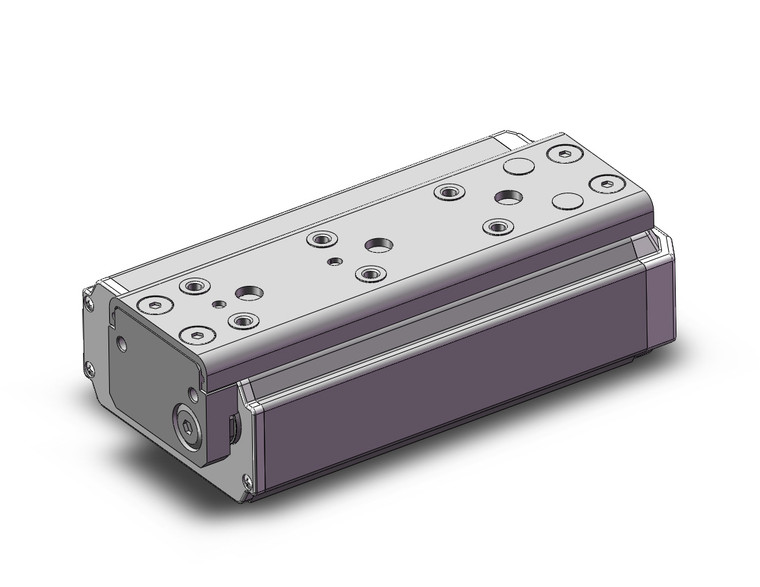

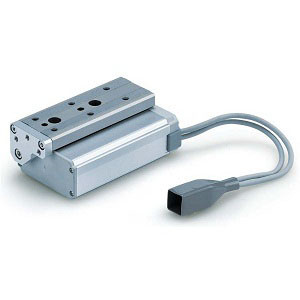

SMC LES25RAJ-75 LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,275.00
The SMC LES25RAJ-75 is a part of the LES-DC Series Electric Slide Table, designed for compact and efficient performance. This model features a servo motor operating at 24 VDC, offering a compact design with a workpiece mounting surface height reduced by up to 12% compared to the LESH series. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The slide table delivers a maximum pushing force of 180 N and ensures precise positioning with a repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES25RAJ-75 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- Without Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
