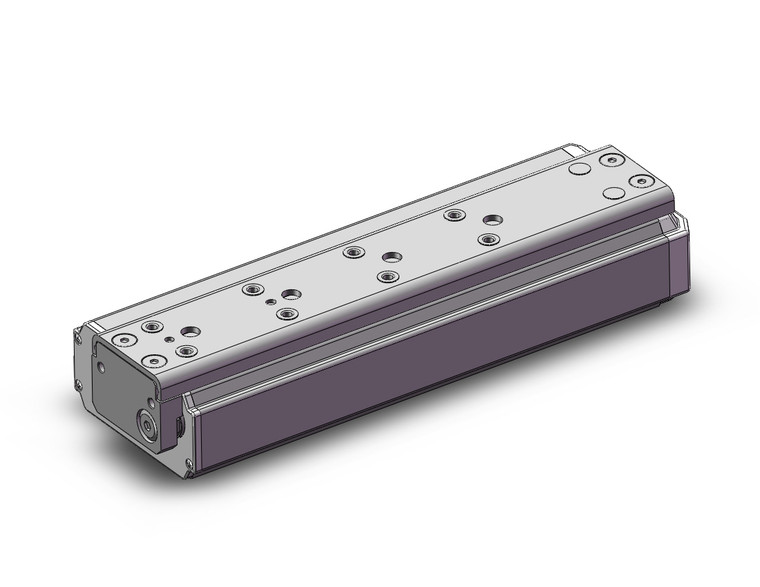

SMC LES25RJ-150B LES-DC Series Electric Slide Table/Compact Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,470.00
The SMC LES25RJ-150B is a part of the LES-DC Series, featuring a compact electric slide table with a servo motor operating at 24 VDC. This model is designed to optimize space and efficiency, offering a workpiece mounting surface height reduced by up to 12% compared to the LESH series. It supports a vertical work load increase of up to 50% and is lightweight, with a weight reduction of up to 29%. The slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, boasting a maximum acceleration/deceleration of 5,000 mm/s² and a top speed of 400 mm/s. The LES25RJ-150B is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models like LECP6 and LECPMJ have been discontinued. This electric slide table is ideal for applications requiring precision, speed, and compact design.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- With Lock
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
