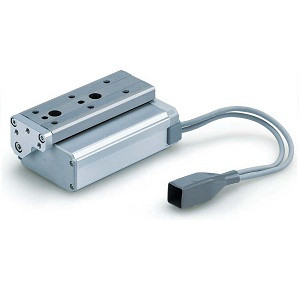

SMC LES8RK-30-R3C918 LES Series Electric Slide Table/Compact Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,485.00
The SMC LES8RK-30-R3C918 is a part of the LES Series Electric Slide Table, featuring a compact type step motor with a servo of 24 VDC, specifically designed for compatibility with the JXC Series. This model offers a significant reduction in workpiece mounting surface height by up to 12% compared to the LESH, making it an ideal choice for space-constrained applications. It boasts an impressive increase in vertical work load capacity by up to 50%, while also being lightweight, with a weight reduction of up to 29%. The electric slide table delivers a maximum pushing force of 180 N and ensures precise operations with a positioning repeatability of ±0.05 mm. It is engineered to enhance productivity by reducing cycle time, achieving a maximum acceleration/deceleration of 5,000 mm/S² and a maximum speed of 400 mm/s. The LES8RK-30-R3C918 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models like LECP6 and LECPMJ have been discontinued. This electric slide table is an excellent choice for applications requiring precision, speed, and efficiency.
- Size:
- 8
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4mm, Size16:5mm, Size25:8mm
- Stroke:
- Stroke 30mm
- Motor Option:
- Without Option
- Body Option:
- None
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Robotic Cable 3m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
