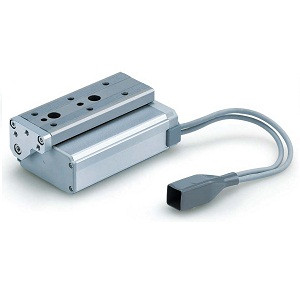

SMC LESH16RK-100-R3CE17 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

SMC LESH16RK-100-R3CE17 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

SMC
SKU:
LESH16RK-100-R3CE17
Availability:
Factory Stock
$1,820.00
Condition:
New
Current Stock:
Description

LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

  • Easy setting: Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);
  • Integration of the guide rail and the table; Uses a recirculating linear guide for high rigidity and high precision;
  • Reduced cycle time; Max. acceleration and deceleration: 5,000 mm/S2; Max. speed: 400 mm/s;
  • Maximum pushing force; 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued)
    • Additional Information
    Size:
    16
    Motor Mounting Position:
    Basic Type/R Type
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size8:4 mm,Size16:5 mm,Size25:8 mm
    Stroke:
    Stroke 100 mm
    Motor Option:
    Without Option
    Body Option:
    Without Option
    Mounting Style:
    Without Side Holder
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol:
    EtherCAT
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
