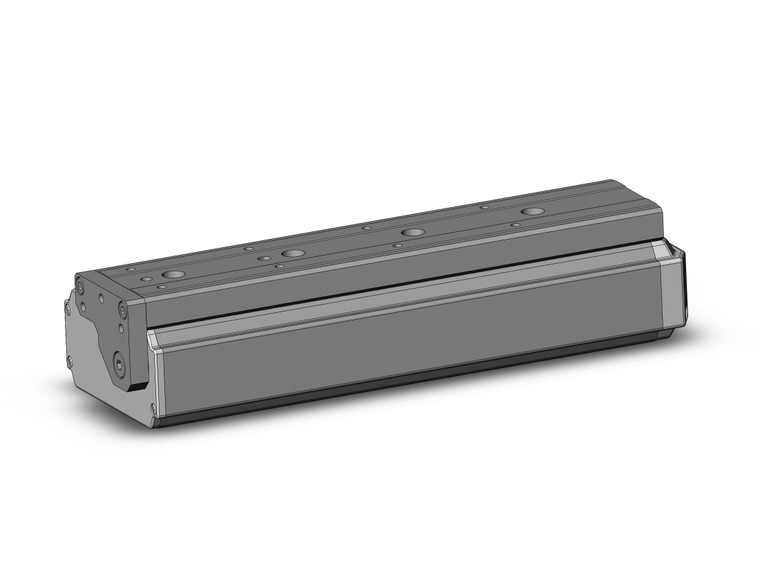

SMC LESH25RK-150-R1AP1 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,760.00
The SMC LESH25RK-150-R1AP1 is a high-performance electric slide table from the LESH-DC Series, designed for applications requiring high rigidity and precision. This model features a servo motor operating at 24 VDC, ensuring efficient and reliable performance.
Key features include an easy setting process, where data can be configured with just two parameters: position and speed. The actuator comes pre-configured with the controller, simplifying setup and operation. The integration of the guide rail and table utilizes a recirculating linear guide, providing exceptional rigidity and precision.
This electric slide table is engineered to reduce cycle times, boasting a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It delivers a maximum pushing force of 180 N and offers positioning repeatability of ±0.05 mm, making it ideal for demanding industrial applications.
The LESH25RK-150-R1AP1 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued. This product is perfect for those seeking a robust and precise solution for their automation needs.
- Size:
- 25
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 150 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- LECPA Pulse Input Type PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
