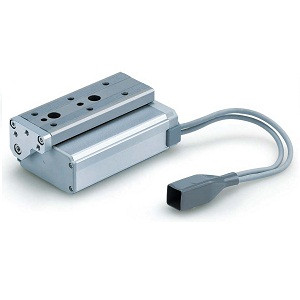

SMC LESH25RK-50-RBC918 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series
SMC
$2,140.00
The SMC LESH25RK-50-RBC918 is a high-performance electric slide table designed for precision and efficiency. This model is part of the LESH Series, featuring a high rigidity type motor with a servo 24 VDC, making it compatible with the JXC series controllers.
Key features include:
- **Easy Setting**: Simplify your setup with just two data inputsposition and speed. The controller comes pre-configured with actuator data, and both components are sold as a package for seamless integration.
- **Integrated Design**: The guide rail and table are combined, utilizing a recirculating linear guide to ensure high rigidity and precision in your operations.
- **Enhanced Performance**: Experience reduced cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s.
- **Powerful Force**: Achieve a maximum pushing force of 180 N, ensuring robust performance for demanding applications.
- **Precision Positioning**: Benefit from a positioning repeatability of ±0.05 mm, ensuring consistent and accurate results.
- **Controller Compatibility**: This electric slide table is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6. Note that LECP6 and LECPMJ are discontinued.
The SMC LESH25RK-50-RBC918 is ideal for applications requiring high precision and reliability, making it a valuable addition to any automated system.
- Size:
- 25
- Motor Mounting Position:
- Basic Type/R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type/Length:
- Robotic Cable 15 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
