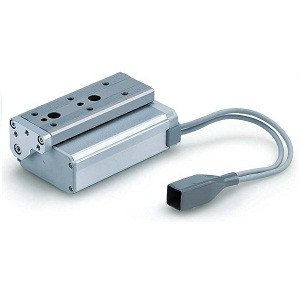

SMC LESH25RK-50BS-R5C518 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

(No reviews yet) Write a Review

SKU:

LESH25RK-50BS-R5C518

MPN:

LESH25RK-50BS-R5C518

Condition:

New

Size:

Motor Mounting Position:

Basic Type/R Type

Motor Type:

Step Motor (Servo 24 VDC)

Lead:

Size8:4 mm,Size16:5 mm,Size25:8 mm

Stroke:

Stroke 50 mm

Motor Option:

With Lock

Body Option:

Dust Proof Specification

Mounting Style:

Without Side Holder

Actuator Cable Type/Length:

Robotic Cable 5 m

Communication Protocol:

Parallel Input (NPN)

Number Of Axes/Special Specification:

Number Of Axis:For Single Axis?Specification:Standard

Mounting:

DIN Rail Mounting

Communication Plug Connector I/O Cable:

Without Controller Or Without Plug Connector

Description

Description

LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

Name: SMC LESH25RK-50BS-R5C518 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series
Brand: SMC
SKU: LESH25RK-50BS-R5C518
Price: 1910 USD
Availability: InStock

Easy setting: Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);

Integration of the guide rail and the table; Uses a recirculating linear guide for high rigidity and high precision;

Reduced cycle time; Max. acceleration and deceleration: 5,000 mm/S2; Max. speed: 400 mm/s;

Maximum pushing force; 180 N;

Positioning repeatability: ±0.05 mm;

Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued)
