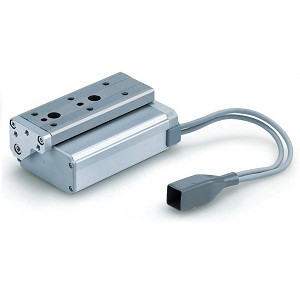

SMC LESH8RJ-50-R1C917 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

SMC LESH8RJ-50-R1C917 LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

SMC
SKU:
LESH8RJ-50-R1C917
Availability:
Factory stock
$1,540.00
Condition:
New
Current Stock:
Description

LESH Series Electric Slide Table/High Rigidity Type Motor (Servo 24 VDC) Applicable To The JXC series

  • Easy setting: Data can be set with only 2 items, position and speed; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);
  • Integration of the guide rail and the table; Uses a recirculating linear guide for high rigidity and high precision;
  • Reduced cycle time; Max. acceleration and deceleration: 5,000 mm/S2; Max. speed: 400 mm/s;
  • Maximum pushing force; 180 N;
  • Positioning repeatability: ±0.05 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued)
