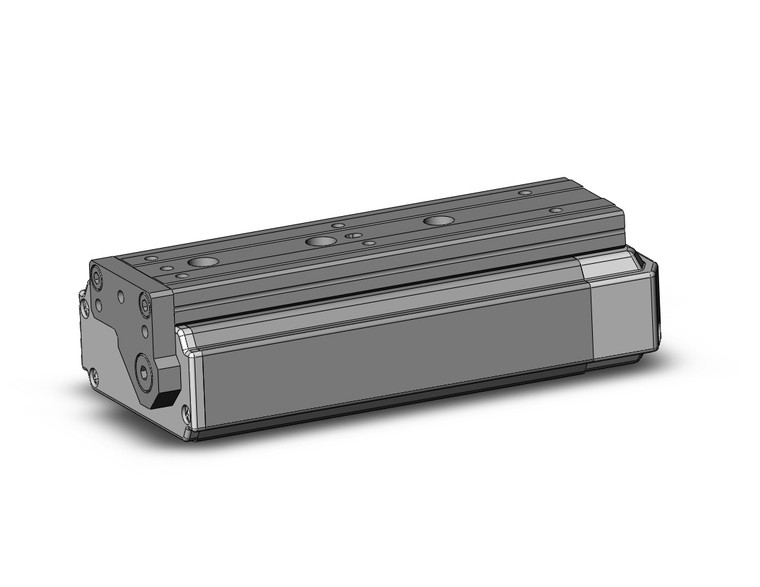

SMC LESH8RK-50S LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$890.00
The SMC LESH8RK-50S LESH-DC Series Electric Slide Table is designed for high rigidity and precision, making it an ideal choice for applications requiring reliable and accurate motion control. This electric slide table features a servo motor operating at 24 VDC, ensuring efficient performance. With easy setting capabilities, users can quickly configure the system by simply inputting position and speed data. The integration of the guide rail and table, utilizing a recirculating linear guide, enhances the system's rigidity and precision.
This model is engineered to reduce cycle time with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. It offers a maximum pushing force of 180 N and boasts a positioning repeatability of ±0.05 mm, ensuring consistent and precise operation. The LESH8RK-50S is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This electric slide table is sold as a package with the controller, providing a comprehensive solution for your automation needs.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- Without Option
- Body Option:
- Dust Proof Specification
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
