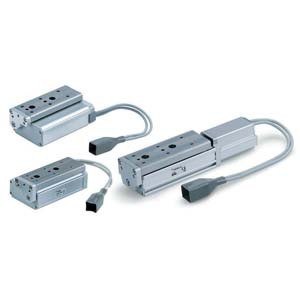

SMC LESH8RK-75S LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$920.00
The SMC LESH8RK-75S LESH-DC Series Electric Slide Table is designed for high rigidity and precision, featuring a Servo Motor with 24 VDC. This advanced electric slide table offers easy setup with just two parameters: position and speed. The actuator comes pre-configured with the controller, ensuring seamless integration. The innovative design combines a guide rail and table, utilizing a recirculating linear guide for enhanced stability and accuracy. Experience reduced cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The system delivers a maximum pushing force of 180 N and boasts a positioning repeatability of ±0.05 mm. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, this electric slide table is a versatile solution for various applications. Note that some controllers, such as LECP6 and LECPMJ, have been discontinued.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8:4 mm,Size16:5 mm,Size25:8 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- Without Option
- Body Option:
- Dust Proof Specification
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
