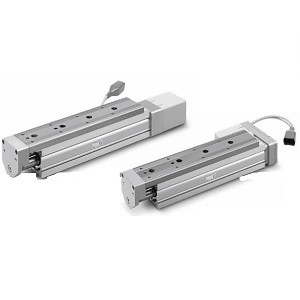

SMC LESYH25DEB-100C-R5CE17 LESYH Series Slide Tables/High Precision Type Battery-less Absolute Encoder(Step Motor 24 VDC) Applicable To The JXC Series

SMC LESYH25DEB-100C-R5CE17 LESYH Series Slide Tables/High Precision Type Battery-less Absolute Encoder(Step Motor 24 VDC) Applicable To The JXC Series

SMC
SKU:
LESYH25DEB-100C-R5CE17
Availability:
Factory Stock
$2,050.00
Condition:
New
Current Stock:
Description

LESYH Series Slide Tables/High Precision Type Battery-less Absolute Encoder(Step Motor 24 VDC) Applicable To The JXC Series

  • Improved positioning repeatability due to the adoption of a ball screw drive; Positioning repeatability: ±0.01 mm;
  • Lost motion: 0.1 mm or less;
  • Increased vertical work load: 5 times or more;
  • Motorless type; Can be used with your current motor and driver !
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    Straight Type
    Motor Type:
    Battery-less Absolute(Step Motor 24 VDC)
    Lead:
    Size8:5 mm,Size16:6 mm,Size25:8 mm
    Stroke:
    Stroke 100 mm
    Motor Option:
    Without Lock
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol:
    EtherCAT
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
