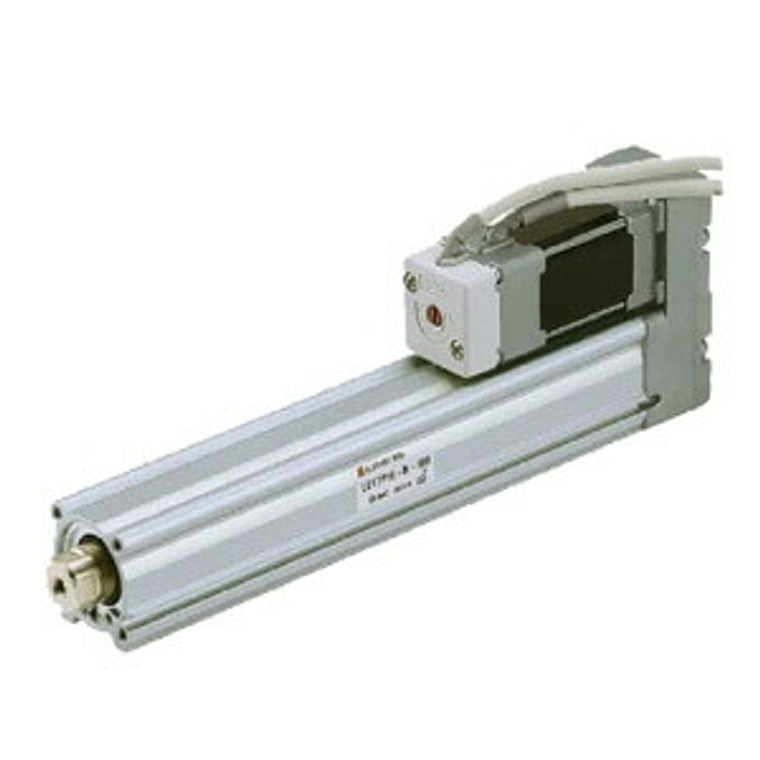

SMC LEY16A-250-S3CE18 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,465.00
SMC LEY16A-250-S3CE18 - LEY Series Electric Actuator, 16mm, 250mm Stroke, AC Servo Motor
The SMC LEY16A-250-S3CE18 is an electric actuator with 16mm frame and 250mm stroke. AC Servo motor drive for precise, programmable linear motion.
Key Features & Specifications
- AC Servo motor drive - precise positioning with programmable speed and acceleration
- Ball screw mechanism - repeatable linear motion with minimal backlash
- Programmable motion profiles - configurable position, speed, and force
- High rigidity frame - supports demanding load conditions
- Controller compatible - SMC LECP/JXC series controllers
- Multiple rod options - standard, guided, and clean-room variants
- Size: 16mm | Stroke: 250mm | AC Servo Motor
Typical Applications
Designed for precision positioning, automated assembly, pick-and-place, and industrial automation requiring programmable electric motion control.
Manufactured by SMC Corporation.
- Size:
- 16
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:10mm,Size25:12mm,Size32/40:16mm
- Stroke:
- Stroke 250mm
- Motor Option:
- Without Option
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Actuator Cable Type/Length:
- Standard Cable 3m
- Communication Protocol:
- EtherCAT
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
