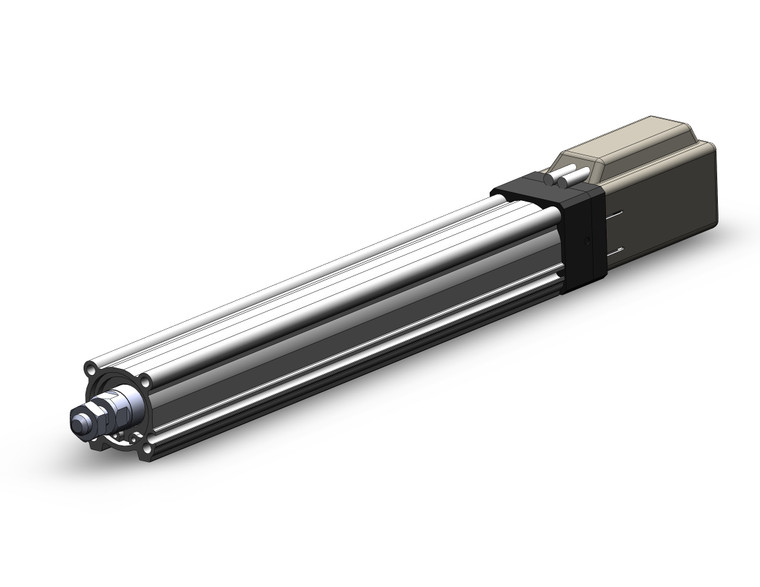

SMC LEY16DA-150CM-RACE18 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,515.00
The SMC LEY16DA-150CM-RACE18 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm and offers flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, allowing the actuator to hold its position against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures high precision in operations. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, among others. The LEY Series also includes high output motors (100/200/400 W) for improved high-speed transfer and high acceleration compatibility up to 5,000 mm/S2. Additionally, it features a pulse input type and an internal absolute encoder for enhanced performance.
- Size:
- 16
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:10mm,Size25:12mm,Size32/40:16mm
- Stroke:
- Stroke 150mm
- Motor Option:
- With Motor Cover
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Actuator Cable Type/Length:
- Robotic Cable 10m
- Communication Protocol:
- EtherCAT
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
