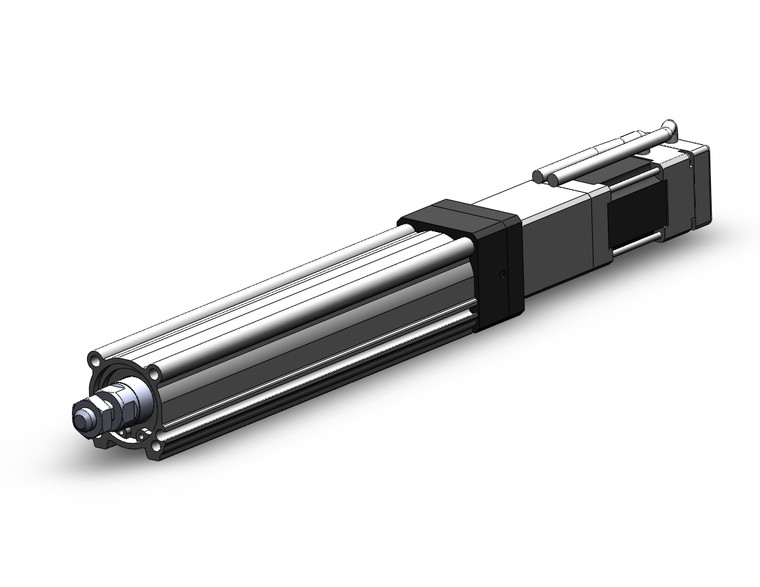

SMC LEY16DAB-100BM-R36P3D LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,485.00
The SMC LEY16DAB-100BM-R36P3D is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo system, offering a long stroke capability of up to 500 mm. It features direct mounting in three directions and bracket mounting in three types, providing flexibility in installation. The actuator supports auto switch mounting and allows for speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built with a dust and drip-proof IP65 specification for enhanced durability.
The LEY Series also includes an AC Servo Motor option, offering high output with 100/200/400 W motors. It is designed for improved high-speed transfer and high acceleration compatibility, reaching up to 5,000 mm/S2. The motor features a pulse input type and comes with an internal absolute encoder, ensuring precise positioning repeatability of ±0.02 mm or less. The actuator is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, although some models have been discontinued. This makes the SMC LEY16DAB-100BM-R36P3D an ideal choice for applications requiring reliable and accurate motion control.
- Size:
- 16
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECA6 Step Fata Input Type PNP (LECP6 Manufacture discontinued)
- I/O Cable Length, Communication Plug:
- 3 m
- Controller Mounting:
- DIN Rail Mounting
- Made To Order:
- Standard
