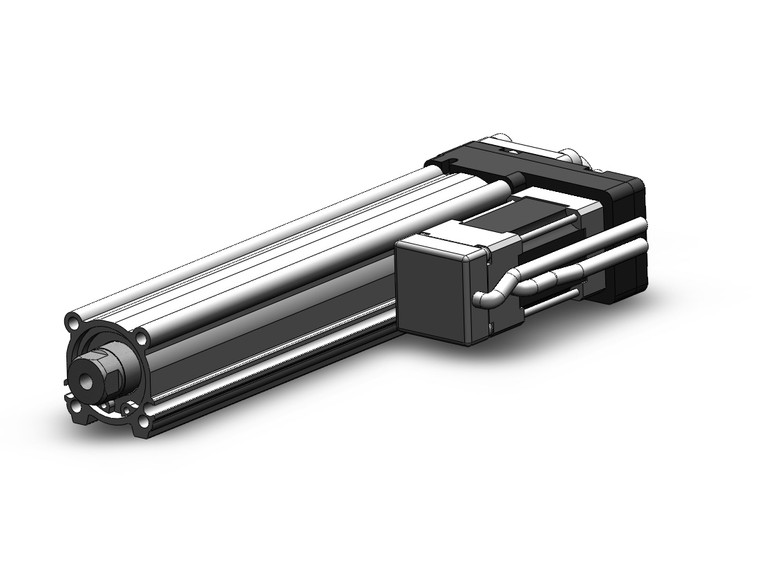

SMC LEY16LC-100D-S1C917 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,305.00
The SMC LEY16LC-100D-S1C917 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm and offers flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, allowing the actuator to hold its position against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures high precision in operations. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, among others. The LEY Series also includes high output motors with improved high-speed transfer ability and high acceleration compatibility, making it suitable for demanding applications.
- Size:
- 16
- Motor Mounting Position:
- Left Side Parallel
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:2.5mm,Size25:3mm,Size32/40:4mm
- Stroke:
- Stroke 100mm
- Motor Option:
- Without Option
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Double Clevis
- Actuator Cable Type/Length:
- Standard Cable 1.5m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
