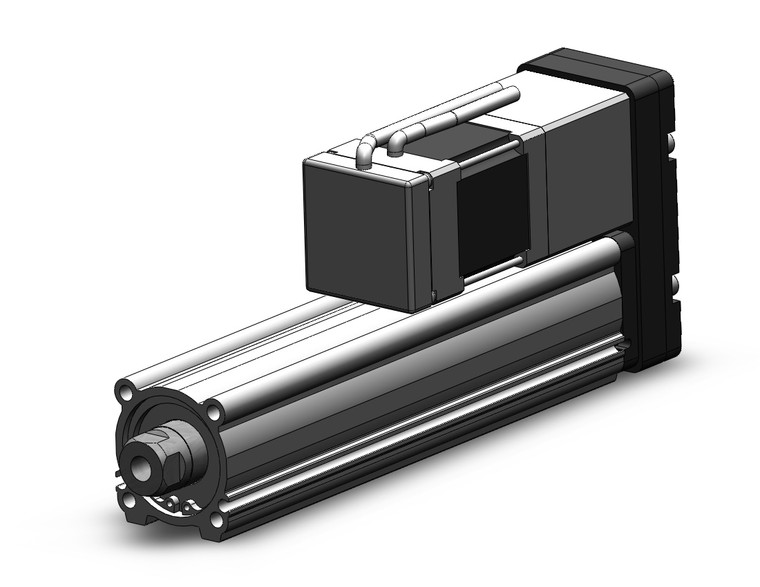

SMC LEY25A-100B LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$960.00
The SMC LEY25A-100B is a versatile electric actuator from the LEY Series, designed for precision and efficiency in automation tasks. This rod type step motor, powered by a 24 VDC servo motor, offers a long stroke capability of up to 500 mm, making it suitable for a wide range of applications. It features direct mounting in three directions and bracket mounting in three types, providing flexibility in installation. The actuator supports auto switch mounting and allows for speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. With a positioning repeatability of ±0.02 mm or less and a dust/drip proof IP65 specification, this actuator ensures reliable performance in demanding environments.
The LEY Series also includes an AC servo motor option, offering high output power of 100/200/400 W and improved high-speed transfer ability. It is compatible with high acceleration up to 5,000 mm/S² and features a pulse input type with an internal absolute encoder for precise control. The actuator is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, ensuring seamless integration into existing systems. Whether for industrial automation or specialized applications, the SMC LEY25A-100B delivers exceptional performance and adaptability.
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 10 mm, Size25: 12 mm, Size32: 16 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
