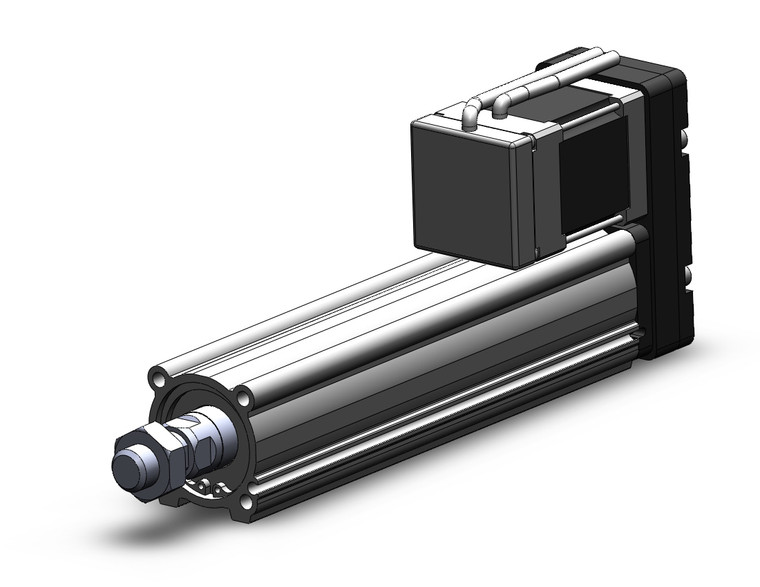

SMC LEY25B-100M-RAC918 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,575.00
The SMC LEY25B-100M-RAC918 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm, allowing for extensive reach in various applications. The actuator offers flexible mounting options with direct mounting in three directions and bracket mounting in three types, ensuring adaptability to different setups.
Equipped with an auto switch, the LEY25B-100M-RAC918 supports speed control and positioning with a maximum of 64 points, providing precise control over movement. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod applies pressure to a workpiece. The actuator boasts a positioning repeatability of ±0.02 mm or less, ensuring high accuracy in operations.
Built to withstand challenging environments, this actuator comes with a dust and drip-proof IP65 specification. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, although some models have been discontinued. The LEY Series also includes high output AC servo motors with improved high-speed transfer ability and high acceleration compatibility, making it suitable for demanding applications. With an internal absolute encoder and pulse input type, the actuator ensures reliable performance and precision in every task.
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:5mm,Size25:6mm,Size32/40:8mm
- Stroke:
- Stroke 100mm
- Motor Option:
- Without Option
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Actuator Cable Type/Length:
- Robotic Cable 10m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
