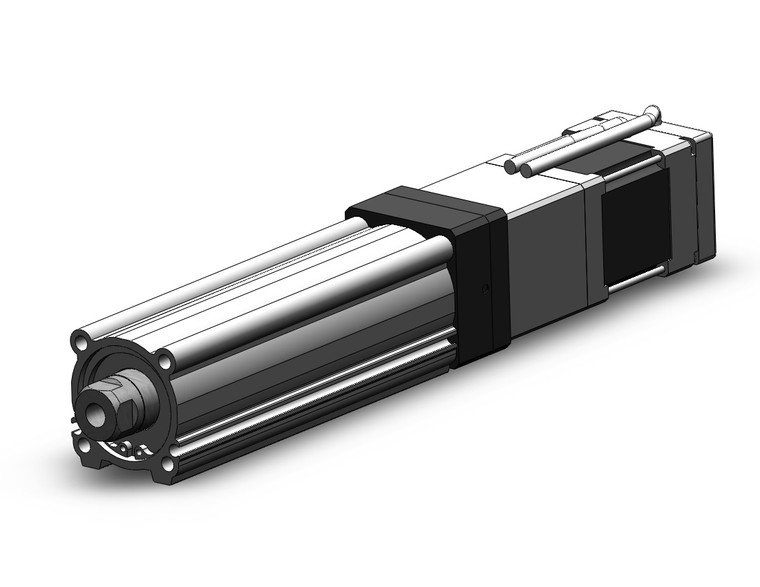

SMC LEY25DB-50B-S1 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$900.00
The SMC LEY25DB-50B-S1 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with up to 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a high positioning repeatability of ±0.02 mm or less and is built to withstand harsh environments with its IP65 dust and drip-proof specification. Compatible with a range of controllers, including JXC51, JXC61, and others, this actuator is ideal for applications requiring high output motors (100/200/400 W), improved high-speed transfer, and high acceleration capabilities up to 5,000 mm/S². It also includes an internal absolute encoder for precise operations. The LEY25DB-50B-S1 is a reliable choice for demanding industrial applications, ensuring consistent performance and durability.
- Size:
- 25
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 50 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
