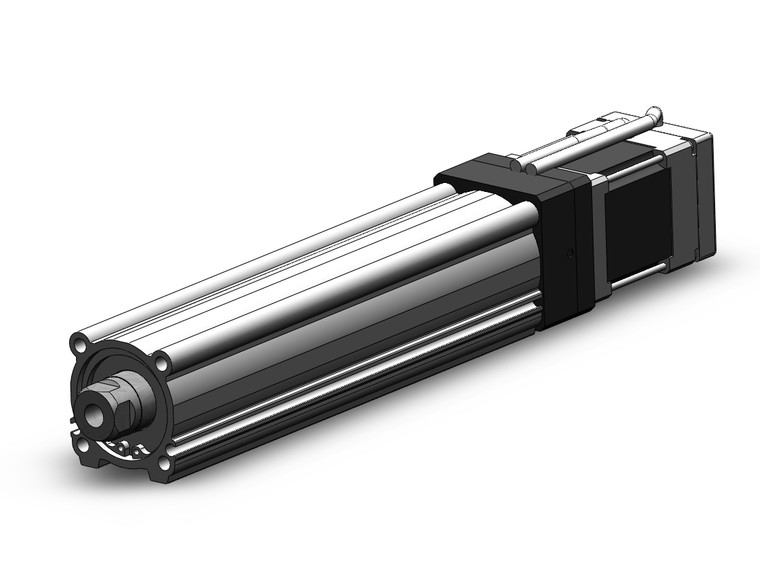

SMC LEY25DC-100 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$610.00
The SMC LEY25DC-100 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built to withstand harsh environments with its IP65 dust and drip-proof specification. Compatible with a range of controllers, including JXC51, JXC61, and others, the LEY25DC-100 ensures seamless integration into various systems. Additionally, the series offers high output AC servo motors with improved high-speed transfer ability and high acceleration compatibility, making it ideal for demanding applications. The actuator is equipped with an internal absolute encoder and supports pulse input type, ensuring precise and reliable performance.
- Size:
- 25
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- Without Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
