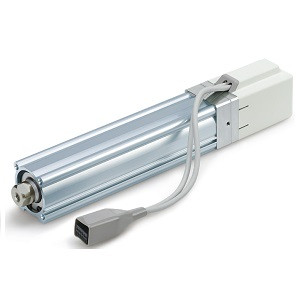

SMC LEY25EB-150CMD-R5C6173 LEY-E Series Electric Actuator/Rod Type Battery-less Absolute Encoder

SMC LEY25EB-150CMD-R5C6173 LEY-E Series Electric Actuator/Rod Type Battery-less Absolute Encoder

SMC
SKU:
LEY25EB-150CMD-R5C6173
$1,305.00
Condition:
New
Current Stock:
Description

LEY-E Series Electric Actuator/Rod Type Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered.;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Long stroke: Max. 500 mm;
  • Direct mounting: 3 directions, Bracket mounting: 3 types;
  • Auto switch can be mounted;
  • Either positioning or pushing control can be selected.; It is possible to hold the actuator with the rod pushing on a workpiece, etc.;
  • Positioning repeatability: ±0.02 mm or less ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Lead:
    LEY25:6 mm, LEY32/40:8 mm
    Stroke:
    Stroke 150 mm
    Motor Option:
    With Motor Cover
    Rod End Thread:
    Rod End Male Thread(1 Rod End Nut Is Included)
    Mounting:
    Double Clevis
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol Input/Output:
    Parallel Input (PNP)
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    I/O Cable (3m)
