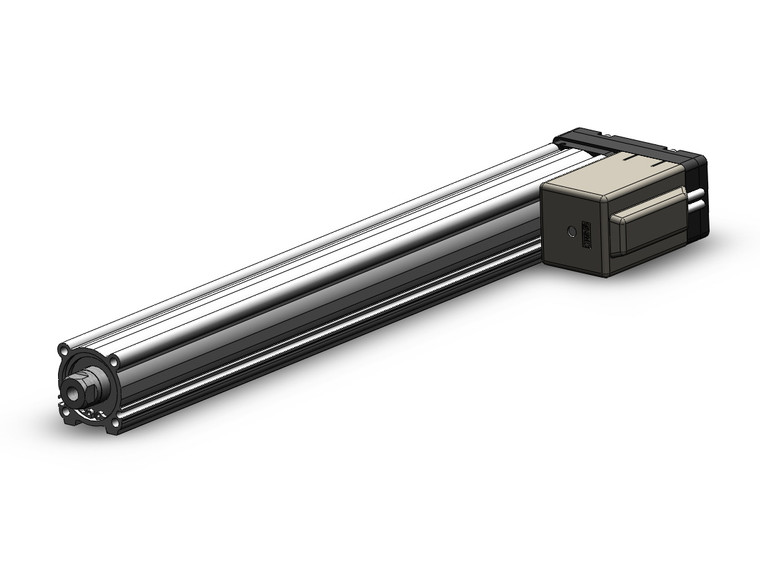

SMC LEY25LC-300C-RAC918 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,655.00
The SMC LEY25LC-300C-RAC918 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm, allowing for extensive reach in various applications. The actuator offers flexible mounting options with direct mounting in three directions and bracket mounting in three types.
Equipped with an auto switch, the LEY25LC-300C-RAC918 supports speed control and positioning with a maximum of 64 points, providing both positioning and pushing control options. It can maintain its position with the rod pushing against a workpiece, ensuring stability and accuracy with a positioning repeatability of ±0.02 mm or less. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification.
Compatible with a range of controllers, including JXC51, JXC61, and others, this actuator is also designed for high output with options of 100/200/400 W motors. It boasts improved high-speed transfer ability and is compatible with high acceleration up to 5,000 mm/S². The inclusion of an internal absolute encoder ensures precise positioning, making it an ideal choice for demanding industrial applications.
- Size:
- 25
- Motor Mounting Position:
- Left Side Parallel
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:2.5mm,Size25:3mm,Size32/40:4mm
- Stroke:
- Stroke 300mm
- Motor Option:
- With Motor Cover
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Actuator Cable Type/Length:
- Robotic Cable 10m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
