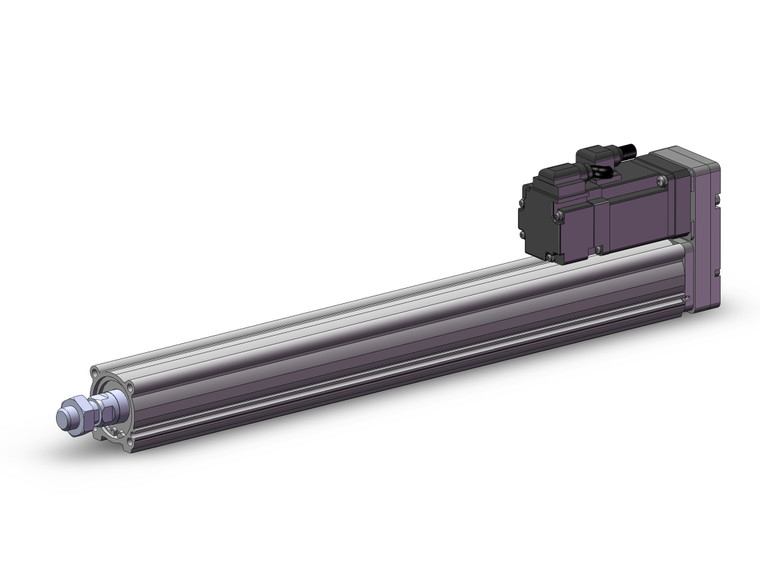

SMC LEY25V6A-300M Rod Type Electric Actuator

SMC LEY25V6A-300M LEY Series Electric Actuator/Rod Type MECHATROLINK Compatible Driver AC Servo Motor

SMC
SKU:
LEY25V6A-300M
$1,515.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEY Series Electric Actuator/Rod Type MECHATROLINK Compatible Driver AC Servo Motor

Series LEY Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Long stroke: Max. 500 mm;
  • Direct mounting: 3 directions, Bracket mounting: 3 types;
  • Auto switch can be mounted;
  • Speed control/Positioning: Max. 64 points;
  • Either positioning or pushing control can be selected;?Possible to hold the actuator with the rod pushing to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Dust/Drip proof (IP65) specification;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEY AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration compatible (5,000 mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Positioning repeatability: ±0.02 mm or less;
  • Dust/Drip proof (IP65) specification;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Accuracy:
    Basic
    Size:
    25
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 100W, Actuator Size 25 mm
    Lead:
    Size25: 12 mm, Size32&Motor Mounting Position In-line: 16 mm, Size32&Motor Mounting Position Parallel: 20 mm, Size63: 20 mm
    Stroke:
    Stroke 300 mm
    Dust/Drip proof:
    Size25/32: Equivalent to IP4x
    Motor Option:
    Without Lock
    Rod End Thread:
    Rod End Male Thread
    Mounting Style:
    Ends Tapped/Body Bottom Tapped
    Cable Type:
    Without Cable
    Cable Length:
    Without Cable
    Driver Type:
    Without Driver
    I/O Cable Length:
    Without Cable
