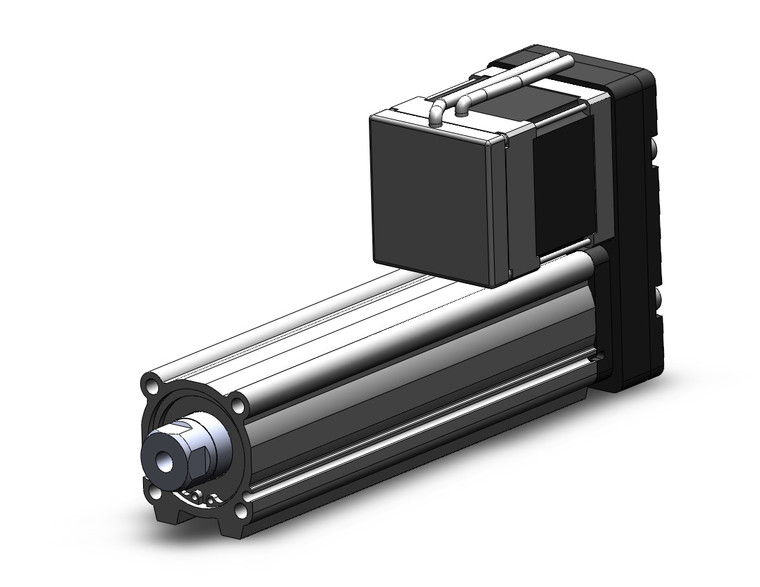

SMC LEY32B-100-S5C918 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
SMC
$1,525.00
The SMC LEY32B-100-S5C918 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm and offers flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a high positioning repeatability of ±0.02 mm or less and is built to withstand harsh environments with its IP65 dust and drip-proof specification.
The LEY Series also includes a high output AC servo motor available in 100, 200, or 400 W, enhancing high-speed transfer capabilities and supporting high acceleration up to 5,000 mm/S². It features a pulse input type and comes with an internal absolute encoder for precise operations. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, this actuator is a reliable choice for demanding industrial applications. Note that some drivers and controllers have been discontinued, so please verify compatibility with your existing systems.
- Size:
- 32
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:5mm,Size25:6mm,Size32/40:8mm
- Stroke:
- Stroke 100mm
- Motor Option:
- Without Option
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Ends Tapped/Body Bottom Tapped
- Actuator Cable Type/Length:
- Standard Cable 5m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
