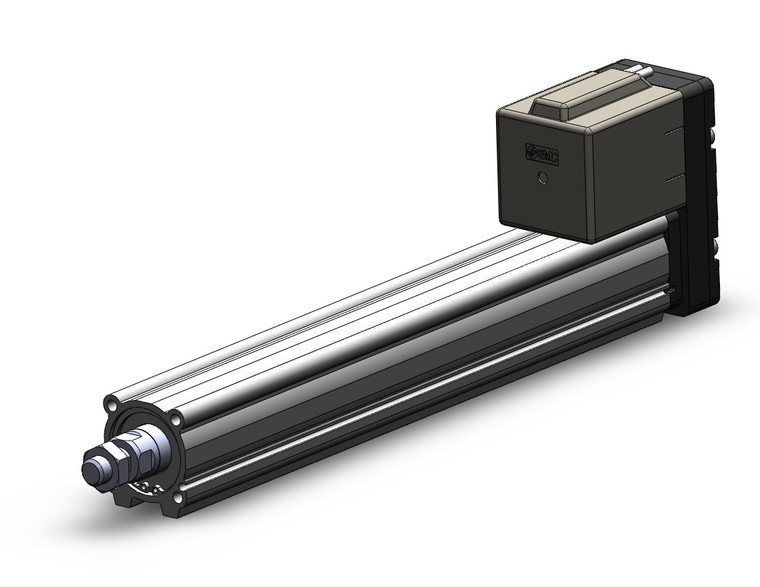

SMC LEY32B-250CM-S3 LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,105.00
The SMC LEY32B-250CM-S3 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, allowing the actuator to hold its position against a workpiece. It boasts a high positioning repeatability of ±0.02 mm and is built to withstand harsh environments with its IP65 dust and drip-proof specification.
The LEY Series also includes an AC Servo Motor option, delivering high output with 100/200/400 W motors. It enhances high-speed transfer capabilities and supports high acceleration up to 5,000 mm/S². The pulse input type motor comes with an internal absolute encoder, ensuring precise positioning repeatability of ±0.02 mm. Compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, this actuator is ideal for applications requiring reliable and accurate motion control.
- Size:
- 32
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm
- Stroke:
- Stroke 250 mm
- Motor Option:
- With Motor Cover
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
