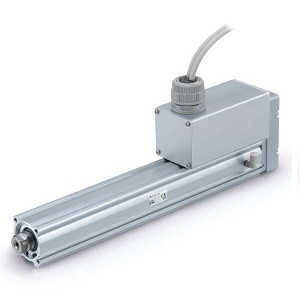

SMC LEY32B-500M-R3C6173-X5 LEY-X5 Series Electric Actuator/Rod Type Step Motor (Servo 24 VDC) Drip Proof Specification (IP65) Applicable To The JXC Series

SMC LEY32B-500M-R3C6173-X5 LEY-X5 Series Electric Actuator/Rod Type Step Motor (Servo 24 VDC) Drip Proof Specification (IP65) Applicable To The JXC Series

SMC
SKU:
LEY32B-500M-R3C6173-X5
Availability:
Factory Stock
$1,870.00
Condition:
New
Current Stock:
Description

LEY-X5 Series Electric Actuator/Rod Type Step Motor (Servo 24 VDC) Drip Proof Specification (IP65) Applicable To The JXC Series

  • Enclosure: IP65 equivalent;
  • Max. stroke: 500 mm
    • Additional Information
    Size:
    32
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size25:6mm, Size32:8mm
    Stroke:
    Stroke 500 mm
    Motor Option:
    Without Option
    Rod End Thread:
    Rod End Male Thread
    Mounting Style:
    Ends Tapped/Body Bottom Tapped
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol:
    Parallel Input (PNP)
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    I/O Cable (3m)
    Made To Order:
    Dust/Drip Proof Specifications
